▷ Practica 10 #PlcLab: MQTT PZEM-014/016 AC Energy Meter
Repositorio:
Materiales:
- 1 PLC-LAB
- 1 Sensor PZEM016 (Link)
Requisitos previos:
MQTT:
Es un protocolo de comunicación ligero, se caracteriza por requerir bajo ancho de banda y poder utilizar en redes no seguras. Este protocolo se basa en publicadores y suscritores. Los publicadores envían un texto a un tópico, dicho mensaje será recibido por todos los dispositivos que estén suscritos al tópico en cuestión. La ventaja de este protocolo es que múltiples suscritores pueden recibir el mensaje al mismo tiempo. Lo que permite crear redes grandes para transferencia de información.
Actualmente muchos lenguajes de programación cuentan con librerías especializadas que nos permiten conectar, suscribir y publicar utilizando este protocolo. Lo que vuelve muy versátil para diferentes proyectos que utilicen Python, NodeJs, java, php entre otros.
Código Principal:
This file contains bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
/* | |
Autor: Vidal Bazurto (avbazurt@espol.edu.ec) | |
GitHub: https://github.com/avbazurt/CURSO-PLC-LAB | |
Practica #9: MQTT PZEM-014/016 AC Energy Meter | |
*/ | |
#include <WiFi.h> | |
extern "C" { | |
#include "freertos/FreeRTOS.h" | |
#include "freertos/timers.h" | |
} | |
#include <AsyncMqttClient.h> | |
#include <ModbusMaster.h> | |
#include <TaskScheduler.h> | |
#include <ArduinoJson.h> | |
/* | |
Configuramos credenciales WiFi | |
*/ | |
#define ssid "NETLIFE-BAZURTO" | |
#define password "0990919594" | |
/* | |
Credenciales MQTT | |
*/ | |
#define ssid "NETLIFE-BAZURTO" | |
#define password "0990919594" | |
#define MQTT_HOST "192.168.100.28" | |
#define MQTT_PORT 1883 | |
#define MQTT_USER "esp32" | |
#define MQTT_PASS "esp32" | |
AsyncMqttClient mqttClient; | |
TimerHandle_t mqttReconnectTimer; | |
/* | |
Pines Dedicados modulo PLC-LAB | |
*/ | |
#define RS485_SERIAL Serial2 | |
#define MAX485_DE GPIO_NUM_27 // Define DE Pin to Arduino pin. Connect DE Pin of Max485 converter module | |
#define MAX485_RE GPIO_NUM_26 // Define RE Pin to Arduino pin. Connect RE Pin of Max485 converter module | |
#define RS485_SERIAL_RX GPIO_NUM_25 | |
#define RS485_SERIAL_TX GPIO_NUM_14 | |
/* | |
Configuracion RS485 | |
*/ | |
#define PZEM014_MODBUS_ADDR 0x01 | |
#define PZEM014_MODBUS_BAUD 9600 | |
//Estructura datos Electricos Sensor | |
struct PZEM { | |
float voltaje = 0; | |
float corriente = 0; | |
float potencia = 0; | |
float energia = 0; | |
float frecuencia = 0; | |
float FP = 0; | |
}; | |
//Definimos la estructura | |
PZEM Sensor; | |
//Clase Modbus necesaria | |
ModbusMaster mbus_sensor; | |
// TASK | |
Scheduler runner; | |
void envioDatosMQTT(void); | |
Task task_envioDatosMQTT(1000, TASK_FOREVER, &envioDatosMQTT, &runner); | |
void setup() { | |
//Iniciamos el Serial | |
Serial.begin(115200); | |
//Habilitamos los pines como salida | |
pinMode(MAX485_DE, OUTPUT); | |
pinMode(MAX485_RE, OUTPUT); | |
//Iniciamos con los pines en bajo | |
RS485_switch2RX(); | |
//Configuramos el Serial para RS485 | |
RS485_SERIAL.begin(9600, SERIAL_8N1, RS485_SERIAL_RX, RS485_SERIAL_TX); | |
//Iniciamos el ModbusMaster | |
mbus_sensor.begin(PZEM014_MODBUS_ADDR, RS485_SERIAL); | |
//Agregmos los callback para pre y pos Transmision | |
mbus_sensor.preTransmission(RS485_switch2TX); | |
mbus_sensor.postTransmission(RS485_switch2RX); | |
//Configuramos el timer MQTT | |
mqttReconnectTimer = xTimerCreate("mqttTimer", pdMS_TO_TICKS(2000), pdFALSE, (void*)0, reinterpret_cast<TimerCallbackFunction_t>(connectToMqtt)); | |
//Configuramos los callback MQTT | |
mqttClient.onConnect(onMqttConnect); | |
mqttClient.onDisconnect(onMqttDisconnect); | |
mqttClient.onMessage(onMqttMessage); | |
mqttClient.onPublish(onMqttPublish); | |
mqttClient.setServer(MQTT_HOST, MQTT_PORT); | |
mqttClient.setCredentials(MQTT_USER, MQTT_PASS); | |
//Nos conectamos al WiFi | |
WiFi.mode(WIFI_STA); | |
WiFi.begin(ssid, password); | |
if (WiFi.waitForConnectResult() != WL_CONNECTED) { | |
Serial.println("WiFi Failed"); | |
while (1) { | |
delay(1000); | |
} | |
} | |
connectToMqtt(); | |
task_envioDatosMQTT.enable(); | |
} | |
void loop() { | |
runner.execute(); | |
} | |
void RS485_switch2TX(void) | |
{ | |
digitalWrite(MAX485_DE, HIGH); | |
digitalWrite(MAX485_RE, HIGH); | |
} | |
void RS485_switch2RX(void) | |
{ | |
digitalWrite(MAX485_DE, LOW); | |
digitalWrite(MAX485_RE, LOW); | |
} | |
void envioDatosMQTT(void) { | |
if (mqttClient.connected()) { | |
//Obtenemos la muestra del sensor | |
muestreoSensor(mbus_sensor, Sensor); | |
//Creo el JSON | |
StaticJsonDocument<250> doc; | |
doc["voltaje"] = Sensor.voltaje; | |
doc["corriente"] = Sensor.corriente; | |
doc["potencia"] = Sensor.potencia; | |
doc["energia"] = Sensor.energia; | |
doc["frecuencia"] = Sensor.frecuencia; | |
doc["FP"] = Sensor.FP; | |
char buffer[100]; | |
serializeJson(doc, buffer); | |
uint16_t packetIdPub1 = mqttClient.publish("sensorRS485", 1, true, buffer); | |
Serial.print("Publishing at QoS 1, packetId: "); | |
Serial.println(packetIdPub1); | |
} | |
} | |
void muestreoSensor(ModbusMaster & mbus_sensor, PZEM & Sensor) | |
{ | |
uint8_t res; | |
// La trama MODBUS mostrada en el folleto se traduce en esta petición de | |
// biblioteca: | |
res = mbus_sensor.readInputRegisters(0x0000, 9); | |
uint32_t tempdouble = 0x00000000; | |
Sensor.voltaje = mbus_sensor.getResponseBuffer(0x0000) / 10.0; | |
tempdouble = mbus_sensor.getResponseBuffer(0x0002) + mbus_sensor.getResponseBuffer(0x0001); | |
Sensor.corriente = tempdouble / 1000.00; | |
tempdouble = mbus_sensor.getResponseBuffer(0x0004) + mbus_sensor.getResponseBuffer(0x0003); | |
Sensor.potencia = tempdouble / 10.0; | |
tempdouble = mbus_sensor.getResponseBuffer(0x0006) + mbus_sensor.getResponseBuffer(0x0005); | |
Sensor.energia = tempdouble; | |
Sensor.frecuencia = mbus_sensor.getResponseBuffer(0x0007) / 10.0; | |
Sensor.FP = mbus_sensor.getResponseBuffer(0x0008) / 100.00; | |
} | |
/* | |
Callback MQTT | |
*/ | |
void connectToMqtt() { | |
Serial.println("Connecting to MQTT..."); | |
mqttClient.connect(); | |
} | |
void onMqttConnect(bool sessionPresent) { | |
Serial.println("Connected to MQTT."); | |
Serial.print("Session present: "); | |
Serial.println(sessionPresent); | |
} | |
void onMqttDisconnect(AsyncMqttClientDisconnectReason reason) { | |
Serial.println("Disconnected from MQTT."); | |
if (WiFi.isConnected()) { | |
xTimerStart(mqttReconnectTimer, 0); | |
} | |
} | |
void onMqttMessage(char* topic, char* payload, AsyncMqttClientMessageProperties properties, size_t len, size_t index, size_t total) { | |
Serial.println("Publish received."); | |
Serial.print(" topic: "); | |
Serial.println(topic); | |
Serial.print(" qos: "); | |
Serial.println(properties.qos); | |
Serial.print(" dup: "); | |
Serial.println(properties.dup); | |
Serial.print(" retain: "); | |
Serial.println(properties.retain); | |
Serial.print(" len: "); | |
Serial.println(len); | |
Serial.print(" index: "); | |
Serial.println(index); | |
Serial.print(" total: "); | |
Serial.println(total); | |
} | |
void onMqttPublish(uint16_t packetId) { | |
Serial.println("Publish acknowledged."); | |
Serial.print(" packetId: "); | |
Serial.println(packetId); | |
} |

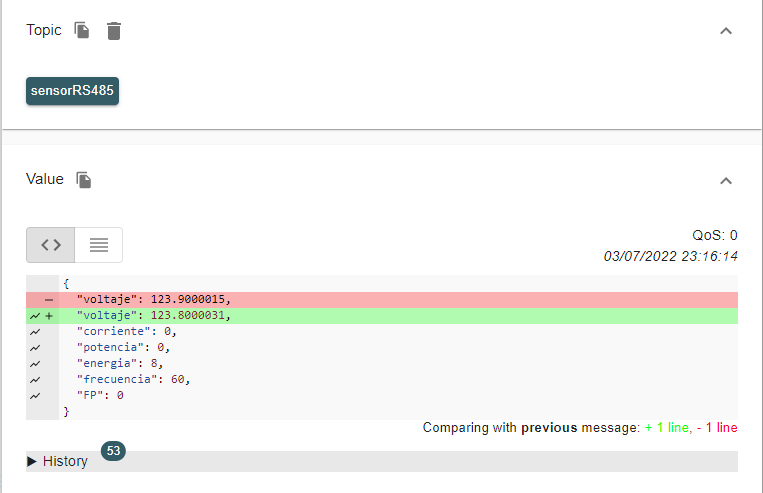

Capturas:
